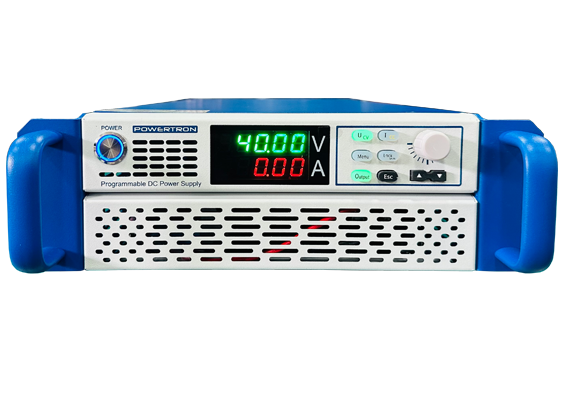

Programmable DC Power Supply : POWERTRON Programmable DC Power Supply delivers high-accuracy, stable, and configurable DC power for laboratory, industrial, R&D, and production testing applications. Designed with advanced digital control technology, it offers wide voltage/current ranges, ultra-low ripple, high efficiency, and fast transient response. With user-friendly programming options, multiple communication interfaces, and built-in protection features, POWERTRON DC supplies ensure reliable performance for electronics testing, battery charging, automation systems, and component validation. Trusted for performance and durability, POWERTRON provides precise programmable output, superior reliability, and intelligent operation for demanding power test environments.
Features:
- Low Ripple, High Stability
- List Mode Function, Auto Run Function, Remote Sensing Function
- No Overshoot During Startup
- Adjustable Voltage Rise Time
- Preset Function, Setting Of Voltage & Current With Ouput Circuit
- Multiple Protections: Ovp, Otp, Acf 7 Current Limit
- Standard Interface: Rs323, Rs485, Support ModbusRtu Commands
- Optional Interface: Dc 0-5V, 0-10V, Or 4-20Ma Interface For Control And Feedback
| Available Variants for 3KW Series | |||||||
|---|---|---|---|---|---|---|---|
| Model no. | Rated Ouput | Voltage Ripple Vrms (20MHz) | Programming Resolution | Display Resolution | |||
| V | A | V | A | V | A | ||
| PIPL-3KW-30-200-PDP | 0-30V | 200A | <0.02% | 0.05% | 0.05% | 0.01V | 0.1A |
| PIPL-3KW-60-100-PDP | 0-60V | 100A | <0.02% | 0.05% | 0.05% | 0.01V | 0.1A |
| PIPL-3KW-100-60-PDP | 0-100V | 60A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-3KW-150-40-PDP | 0-150V | 40A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-3KW-300-20-PDP | 0-300V | 20A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-3KW-600-15-PDP | 0-600V | 0-15A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-3KW-800-08-PDP | 0-800V | 0-7.5A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-3KW-1K-06-PDP | 0-1000V | 0-6A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| Available Variants for 6KW Series | |||||||
|---|---|---|---|---|---|---|---|
| Model no. | Rated Ouput | Voltage Ripple Vrms (20MHz) | Programming Resolution | Display Resolution | |||
| V | A | V | A | V | A | ||
| PIPL-6KW-30-200-PDP | 0-30V | 200A | <0.02% | 0.05% | 0.05% | 0.01V | 0.1A |
| PIPL-6KW-60-100-PDP | 0-60V | 100A | <0.02% | 0.05% | 0.05% | 0.01V | 0.1A |
| PIPL-6KW-100-60-PDP | 0-100V | 60A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-6KW-150-40-PDP | 0-150V | 40A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-6KW-300-20-PDP | 0-300V | 20A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-6KW-600-15-PDP | 0-600V | 0-15A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-6KW-800-08-PDP | 0-800V | 0-7.5A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| PIPL-6KW-1K-06-PDP | 0-1000V | 0-6A | <0.02% | 0.05% | 0.05% | 0.1V | 0.01A |
| Available Variants for 1K5W Series | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model no. | Rated Ouput | Voltage Ripple Vrms (20MHz) | Programming Resolution | Display Resolution | ||||
| V | A | OVP | V | A | V | A | ||
| PIPL-1K5W-30-50-PDP | 0-30V | 50A | 0-31.5V | <0.5%+100mV | 0.01V | 0.1V | 0.01V | 0.1A |
| PIPL-1K5W-60-25PDP | 0-60V | 25A | 0-52.5V | <0.5%+100mV | 0.01V | 0.1V | 0.01V | 0.1A |
| PIPL-1K5W-100-15-PDP | 0-100V | 15A | 0-63V | <0.5%+100mV | 0.01V | 0.1V | 0.01V | 0.01A |
| PIPL-1K5W-150-15-PDP | 0-150V | 15A | 0-105V | <0.5%+100mV | 0.01V | 0.1V | 0.1V | 0.01A |
| PIPL-1K5W-300-5-PDP | 0-300V | 5A | 0-157.5V | <0.5%+100mV | 0.01V | 0.1V | 0.1V | 0.01A |
