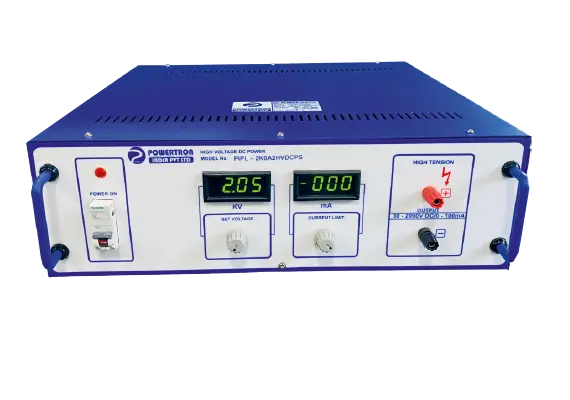

Linear DC Power Supply : POWERTRON Linear DC Power Supply is engineered for applications demanding exceptionally clean, stable, and low-ripple DC output. Its linear regulation technology ensures superior noise performance, making it ideal for laboratories, R&D centers, audio testing, sensor calibration, and precision electronics development. With accurate voltage/current control, advanced protection features, and rugged construction, POWERTRON Linear DC Supplies deliver consistent and reliable performance even in sensitive test environments. User-friendly controls and multiple interface options further enhance flexibility for both bench-top and automated testing setups. Choose POWERTRON for high-precision power, ultra-quiet operation, and unmatched stability in critical measurement and testing applications.
Features:
- Low Ripple, High Stability
- List Mode Function, Auto Run Function, Remote Sensing Function
- No Overshoot During Startup
- Adjustable Voltage Rise Time
- Preset Function, Setting Of Voltage & Current With Ouput Circuit
- Multiple Protections: Ovp, Otp, Acf 7 Current Limit
- Standard Interface: Rs323, Rs485, Support ModbusRtu Commands
- Optional Interface: Dc 0-5V, 0-10V, Or 4-20Ma Interface For Control And Feedback
| Model | DC Output | |
|---|---|---|
| Voltage Current | Voltage Current | |
| PIPL-1620LDP | 0 to 16V | 0 to 20A |
| PIPL-1640LDP | 0 to 16V | 0 to 40A |
| PIPL-3220LDP | 0 to 32V | 0 to 20A |
| PIPL-3230LDP | 0 to 32V | 0 to 30A |
| PIPL-6410LDP | 0 to 64V | 1 to 10A |
| PIPL-6420LDP | 0 to 64V | 1 to 20A |
| PIPL-12805LDP | 0 to 128V | 1 to 5A |
| PIPL-12810LDP | 0 to 128V | 1 to 10A |
| PIPL-16100LDP | 0 to 16V | 0 to 100A |
| PIPL-3260LDP | 0 to 32V | 0 to 60A |
| PIPL-6430LDP | 0 to 64V | 0 to 30A |
| PIPL-8025LDP | 0 to 80V | 0 to 25A |
| PIPL-12815LDP | 0 to 128V | 0 to 15A |
| Model | DC Output | |
|---|---|---|
| Voltage Current | Voltage Current | |
| PIPL-3205LDP | 0 to 32V | 0 to 5A |
| PIPL-3210LDP | 1 to 32V | 0 to 10A |
| PIPL-3220LDP | 2 to 32V | 1 to 20A |
| PIPL-6405LDP | 0 to 64V | 0 to 5A |
| PIPL-6410LDP | 0 to 64V | 0 to 10A |
| PIPL-12802LDP | 0 to 128V | 0 to 2.5A |
| PIPL-12805LDP | 0 to 128V | 0 to 5A |
| PIPL-32100LDP | 0 to 32V | 0 to 100A |
| PIPL-6450LDP | 0 to 64V | 0 to 50A |
| PIPL-12825LDP | 0 to 128V | 0 to 25A |
| PIPL-30010LDP | 30 to 300V | 0 to 10A |
| PIPL-60005LDP | 60 to 600V | 0 to 5A |
| PIPL-1K03LDP | 150 to 1000V | 0 to 3A |
